| RHP Re in"Car"nation High Performance |
| porting services menu |
| "Demo" port Ship 1 cylinder head to our place of business. For the cost of $249.95 + return shipping we will port one intake and exhaust port in any style for "YOU" to copy to the remaining 7 after the casting is return shipped. Includes a bench flow analysis of both ports. This also includes some work on the cross over port to guide for best flow. For large valve Demo port work you must already have your valve sizes roughed in and provide one intake and exhaust valve. |
| Port work is time consuming and consequently expensive. Instead of offering small valve heads with full on port work we now do a budget oriented port job that offers the full benefits of porting with out the unnecessary polishing that takes so much additional time. Large valve iron heads get the full treatment at stage 2 Stage 3 adds a victor or CJ match. |
Aluminum street cylinder heads: "E" rpm and A-429 aluminum CJ's, Kaase P-51's & SCJ's, TFS cj's and
TFS street castings.
Stage 1 intake and exhaust $550.00 (Bowl blend)
Stage 2 intake and exhaust $850.00 360 cfm / 230 / 240 cfm, max
Stage 3 intake and exhaust $ call 375+ cfm / 250 cfm max (max effort porting) Final flow rates depend
casting type.
TFS street castings.
Stage 1 intake and exhaust $550.00 (Bowl blend)
Stage 2 intake and exhaust $850.00 360 cfm / 230 / 240 cfm, max
Stage 3 intake and exhaust $ call 375+ cfm / 250 cfm max (max effort porting) Final flow rates depend
casting type.
Iron ford cylinder head castings any casting number
Stage 1 intake and stage 2 exhaust $700.00 320 cfm / 185 cfm stock exit exhaust stock valve sizes
Stage 2 intake and exhaust $850.00 340 cfm / 200 cfm stock exit exhaust 2.2" / 1.76" valve seats
Stage 3 intake and exhaust $1050.00 355 cfm / 210+ cfm open passage exhaust 2.2", 2.24" /
1.76", 1.8" valve seats.
includes a victor match though with the advent of the TFS track heat intake only dommy
flange apps need the
the victor intake.
Well worked iron CJ castings can approach 390 CFM for high RPM use
Castings should be sent cleaned and machined. They can be machined here at additional cost. Machine work
consisting of; hot tanking, decking, bronze guide liner, cutting for large valves and cutting spring seats is about
$350.00 from my machine shop.
Stage 1 intake and stage 2 exhaust $700.00 320 cfm / 185 cfm stock exit exhaust stock valve sizes
Stage 2 intake and exhaust $850.00 340 cfm / 200 cfm stock exit exhaust 2.2" / 1.76" valve seats
Stage 3 intake and exhaust $1050.00 355 cfm / 210+ cfm open passage exhaust 2.2", 2.24" /
1.76", 1.8" valve seats.
includes a victor match though with the advent of the TFS track heat intake only dommy
flange apps need the
the victor intake.
Well worked iron CJ castings can approach 390 CFM for high RPM use
Castings should be sent cleaned and machined. They can be machined here at additional cost. Machine work
consisting of; hot tanking, decking, bronze guide liner, cutting for large valves and cutting spring seats is about
$350.00 from my machine shop.

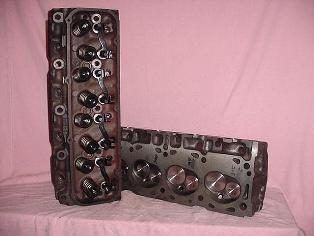

| Full assembled D0VE-C's set up for full roller, solid cam of .657" lift. |
| RHP big valve ported D0VE-C's are now making a "dyno proven" 730 HP+ !!! with a single 4 barrel carburetor |
| In our continuing effort to provide the most accurate information possible we will be updating the flow curves for our ported and as cast castings in the street head family of castings This is being done to allow more direct comparisons between my bench and the super flow models used by other shops. I want to strees that the HP potential of a given casting remains as it has always been. It is just the raw numbers that will be updated and refined. An example would be: Max D0VEs 350+ CFM A-429's 360 CFM BT's 380 CFM RPMs 360 CFM TFS street 370 CFM Kaase SCJ's 390 CFM Kaase P-51's 400+ |
| Intake manifold porting services Victor plenum port work. $200.00 Victor "D" port match to CJ $100.00 Ported EFI OEM intakes available on an exchange basis. Bead blasted and ported. $200.00 plus return shipping |
| EFI 460 intake runner after porting |
